Ebersol Ice Conveyor

Ebersol Ice Conveyor

US$0.00
Add To Cart

Add Ice, Fibres and Powered Additives to Concrete

The 32” Ebersol Ice Conveyor is specifically designed to put cubed ice, powdered additives and fibres safely into wet mixing cement during hot summer construction pours. It comes with a standard 14” wide PVC belt, with 1” vulcanized T-cleats spaced 12” apart to move material quickly and efficiently with minimum tumble back.

The Ebersol Ice Conveyor is used by many cement companies who must maintain the hydration of cement during hot weather. This unit is also used to place ice flakes into fishing vessel holds to pack the fish.

Standard equipment includes the undercarriage with safety winch, new tires and wheels, a 2” ball hitch, safety chains and a full-length galvanized cover. The cover keeps any dry powders from blowing around and protects the belt from UV rays for longer life. A 1 ½ hp electric motor is included as standard equipment and can be wired for either 110 or 220 volt power. It has been designed to safely reach up to a running cement truck drum.

Construction Features

  • 16 gauge galvanized steel body

  • 14” x 32’

  • 1” cleated belt with 12” spacing

  • 1 ½ hp Electric motor

  • Discharge spout

  • Hopper

  • Undercarriage

  • 2” ball hitch for an easy connection for transport that folds for operation

  • Galvanized cover

Operation Features

  • 230’ per minute belt speed

  • Up to 35-degree conveying incline



Belt
Belt with 1” Cleats on 12” Spacing

Sturdy Construction

Covered Conveyor
Optional Galvanized Cover Available

Sealed Bearings

Drive End
1 ½ hp Electric Motor (Hydraulic Available)

Folding Trailer Hitch
Easy connection for transport that folds for operation.

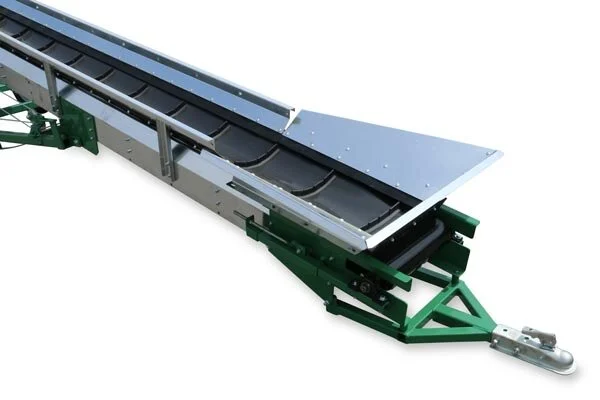

Hopper
Galvanized Hopper for Easy Loading

15" Special Trailer Tires
For easy transportation.
